1. Overview
+ Integrated controller, suitable for low to medium applications.+ All in one processor, saving space and energy.
+ Real-time connectivity with the Profinet communication standard.
+ The CPUs can be used in standalone mode or connected to a certain network.
+ Installation, programming and operation are extremely simple.
+ Web-server integration with standard web pages is easy for users.
+ Capable of recording data for storage when running the program.
+ Built-in powerful functions such as counting, measuring, closed-loop control, motion control.
+ Analog and digital input/output are available.
+ Flexible scalability
2. Application of Siemens S7-1200
The SIMATIC S7-1200 performs control duties for open- and closed-loop applications in production equipment and plant systems. Due to its compact design with the ability to combine multiple modules at the same time, the S7-1200 can diversify tasks from replacing relays and contactors to fully automated tasks for structured networks complex dispersion. Application areas of Siemens S7-1200 include:
+ Location system
+ Conveyor system
+ Elevators and escalators
+ Material handling equipment
+ Mechanical machines
+ Packing machine
+ Printer
+ Looms
+ Mixing system
+ Fresh water treatment plant
+ Water treatment factory
+ External monitor
+ Power distribution station
+ Room temperature control
+ Heating/Cooling System Control
+ Energy management
+ Fire protection system
+ Air conditioning
+ Light control
+ Pump control
+ Security / Access System

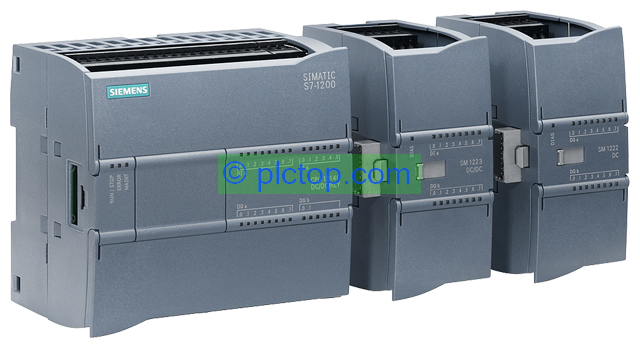

3. Design of Siemens S7-1200
The S7-1200 system consists of the following components:
+ CPU controller combined with three different types such as DC/DC/DC, AC/DC/RL, DC/DC/RL
+ Signal board is used to extend signal I/O or traditional communication with low cost and space saving because it is installed directly on CPU.
+ Different analog and digital signal I/O modules.
+ Various communication modules.
+ Ethernet switch with 4 ports to realize the connection of many different network models.
+ Terminal unit for the SIWAREX weighing system.
+ The PS 1207 power supply is stable with input voltage of 115/230 V AC, output voltage is rated 24 V DC.
4. Mechanical Features
+ Easy to install modules on a standard DIN rail (35mm rail) or in control panels.
+ Safe, sturdy plastic case.
+ Connections and controls are easily accessible, protected by front covers.
+ Terminals and modules can be easily installed and disassembled.
5. Communications
SIMATIC S7-1200 is equipped with different communication mechanisms:
- Built-in Profinet . communication interface
- Communication module PROFIBUS DP master
- PROFIBUS DP slave communication module
- GPRS module for connection to GSM / G mobile phone network
- LTE module for communication in mobile phone networks of the LTE (Long Term Evolution) generation.
- Communication processor for connection to TeleControl control center software via Ethernet and for secure communication over IP networks.
- Communication processor for connection to control centers for remote applications.
- RF120C for connection to SIMATIC Ident systems.
- Module SM1278 for connecting IO-Link sensors and actuators.
- Point-to-point communication module.
6. Profinet Communication
Profinet Communications allows connection to:
- Programming device
- HMI devices
- Other SIMATIC controllers
- “PROFINET IO” Automation Components

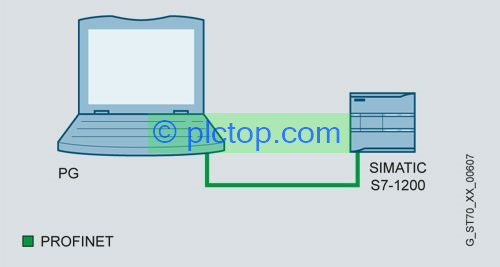

+ Connect the programming device to the personal computer via CAT5 cable

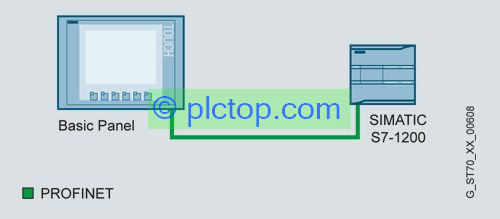

+ Connecting to an HMI Display

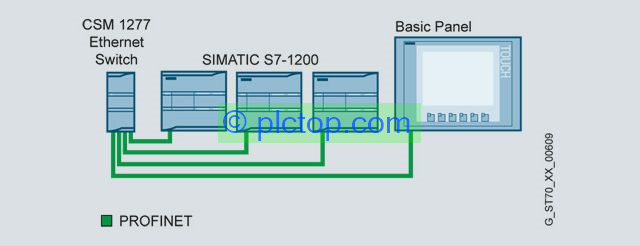

+ Connect Multiple Siemens S7-1200 Controllers

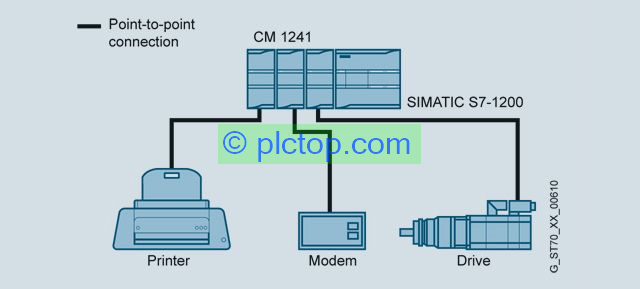

+ Point to point Interaction
- The communication modules that enable point-to-point connections are the RS322 and Rs485 physical communication interfaces. Data transfer is done in the “Freeport” mode of the CPU (a user-specific bit-oriented communication protocol such as ASCII, USS, or Modbus).
- The S7_1200 can communicate with any terminal with a point-to-point connection e.g. drives, printers, barcode readers, modems…
So plctop.com has introduced to you an overview of Siemens S7-1200 PLC, if you have any questions, please comment below the article.
Thanks for Reading!
